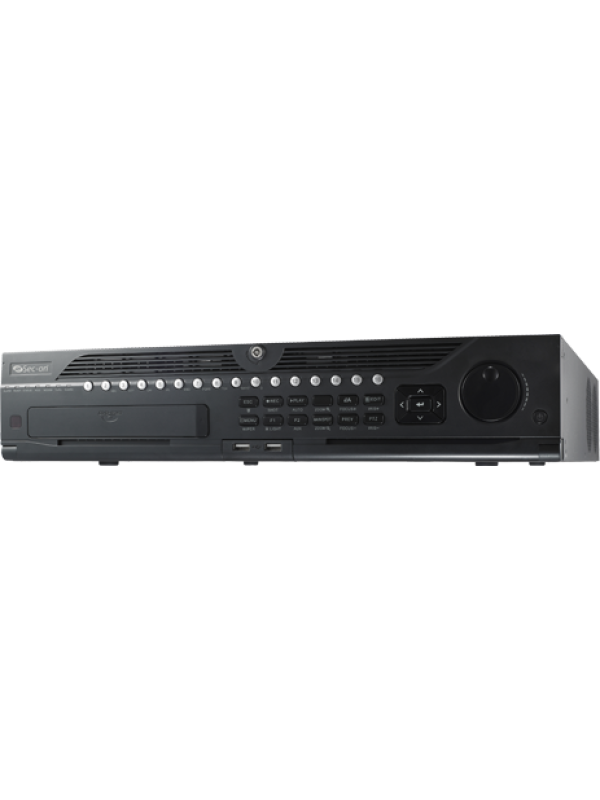

Sec-on 64 Channel Camera Recorder SC-30864

64 Channel NVR 8 SATA Ports

+ KDV

No Stock

Sec-on 64 Channel Camera Recorder SC-30864

Sec-on 64 Channel NVR 8 SATA Ports

Brand: Sec-on   Product Code: SC-30864
Add to Wish List
Compare this Product
  • 64 channel camera recording
  • Up to 12MP recording resolution
  • Two-way audio support
  • H.265, H264 Video compression format
  • 8 SATA Ports, up to 6TB capacity for each disk
  • RAID0, RAID1, RAID5, RAID6, RAID10 support
Video
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Video Input 64 channel
Two-way audio input 1 ch, RCA (2.0 Vp-p, 1kΩ)
Network
Network Interface 2, RJ-45 10/100/1000 Mbps
RAID RAID0, RAID1, RAID5, RAID6, RAID10
Video & Audio Output
HDMI Output Resolution 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output Resolution 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Video Compression
Video Compression Format H.265/H.264/MPEG4
Interface Unit
Audio Output 2 ch, RCA (2.0 Vp-p, 1 KΩ)
Number of HDDs 8 SATA
HDD Capacity Capacity up to 6 TB per HDD
USB Interface Front panel: 2 x USB 2.0; Back panel: 1 USB 3.0
Alarm Input/ Output 16/4
General Features
Chassis Type 2U case mounted in 19-inch rack system
Power Supply 100-240 VAC
Dimension 445 × 470 × 90 mm (17,5"× 18,5" × 3,5")
Weight 10kg
Tags: Sec-on, 64 Channels, Camera Recorder, NVR, 8 SATA Ports, SC-30864
